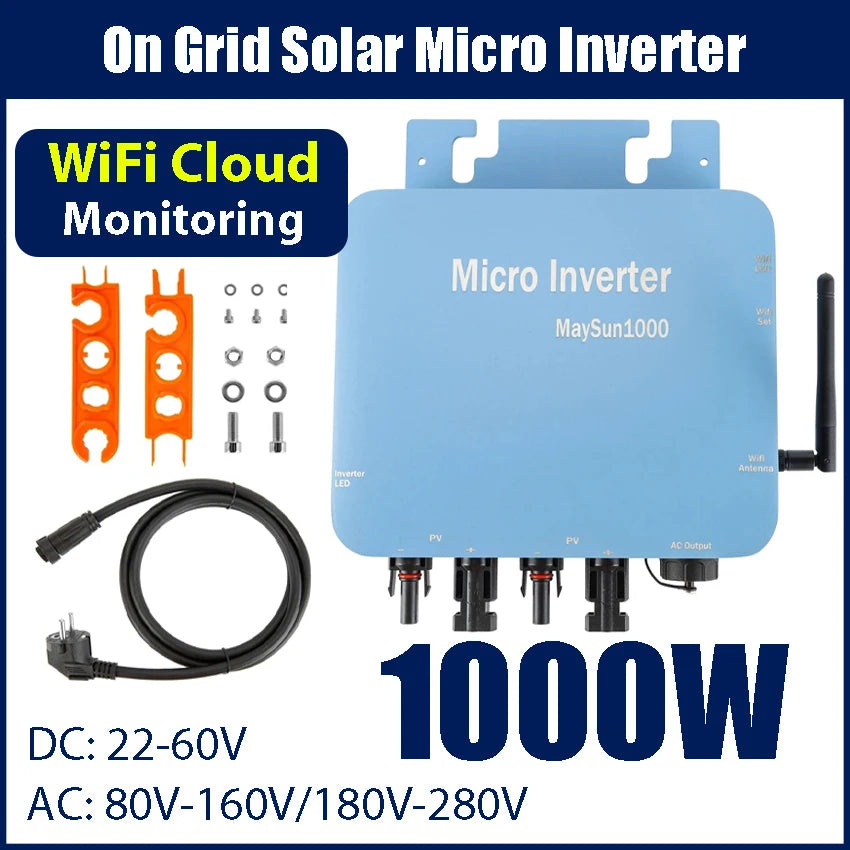

1000W Solar Inverter On Grid Micro With MC Connector WIFI Cloud Monitor Function 220V230V/110V120V AC Waterproof 60VPV input
Pickup currently not available
Reliable shipping
Flexible returns
Details
SPECIFICATIONS
Brand Name: NoEnName_Null
Certification: CE
Choice: yes
Hign-concerned Chemical: None
Is Smart Device: YES
Model Number: MaySun1000
Origin: Mainland China
Output Power: 50/60Hz
Output Type: SINGLE
Size: 21.5*23*4cm
Weight: 1.22kg
Product Features:
MPPT(maximum power point tracking), effectively track and lock maximum power output of solar panels.
When the inverter track the maximum power point of the solar panel, it will automaticallu locked and with stable output.
4 independednt MPPT
Standard MC Connector input port, easy and safe installation.
Integration AC output port
Pure Sine Wave output
Anti-islanding protection function: inverter will automatically stop output when the utility grid off or fault.
Over-temperature protection, short current protection and over-load protection
IP65 waterproof function
Single phase 120V/230V
Built -in imported waterproof rubbber ring
TUV waterproof joint
Stainless steel nut
Smart mobile phone APP monitoring system, built-in WIFI communication module
Model |
MaySun1000 |
|
Input Data (DC, PV) | ||
Number of Input MC Connector |
2 sets |
|
MPPT Voltage Range |
28V-55V |
|
Operation Voltage Range |
20V-60V |
|
Maximum Input Voltage |
60V |
|
Startup Voltage |
20V |
|
Maximum Input Current |
2*10A |
2*16.66A |
Output Data (AC) | ||
Single-phase Grid Type |
120V/230V |
|
Rated Output Power |
950W |
|
Maximum Output Power |
1000W |
|
Nominal Output Current |
120VAC: 7.91A |
|
230VAC: 4.13A | ||
Nominal Output Voltage |
120VAC/230VAC |
|
Default Output Voltage Range |
120VAC: 80V-160V / 230VAC:180V-280V |
|
Nominal output frequency |
50Hz/60Hz |
|
Default Output Frequency Range |
50Hz: 47.5Hz-52.5Hz / 60Hz: 57.5Hz-62.5Hz |
|
Power Factor |
＞0.99 |
|
Total Harmonic Distortion |
THD＜5% |
|
Efficicency | ||
Peak Efficiency |
95% |
|
CEC Weighted Efficiency |
120VAC: 92.5% / 230VAC: 93.5% |
|
Nomimal MPPT Efficiency |
99.90% |
|
Night power consumption |
＜700mW |
|
Mechanical Data | ||
Operating Ambient Temperature Range |
-40℃~65℃ |
|
Storage Temperature Range |
-40℃~85℃ |
|
Dimensions (W*H*D) |
21.5*23*4cm |
|
Weight |
1.22kg |
|
Max Current of AC Bus Cable |
20A |
|
Waterproof Grade |
IP65 |
|
Cooling Mode |
Natural Convection-No Fan |
|
Other Features | ||
Communication |
WIFI With Cloud Monitoring |
|
Transformer Design |
High Frequency Transformers, Galvanically Isoland |
|
Integrated Ground |
Equipment ground is provided by the PE in the AC cable. No additional ground is required. |
|
Protection Functions |
Isolated Island Protection, Voltage Protection, Frequency Protection, Temperature Protection, Current Protection, etc |
|
Design Compliance |
CE etc. |
|
WIFI Cloud Monitoring:
Wiring schematic:
Package List:
